HIPO (hierarchy plus input-process-output)
The HIPO (Hierarchy plus Input-Process-Output) technique is a tool for planning and/or documenting a computer program. A HIPO model consists of a hierarchy chart that graphically represents the program’s control structure and a set of IPO (Input-Process-Output) charts that describe the inputs to, the outputs from, and the functions (or processes) performed by each module on the hierarchy chart.
64.2 Strengths, weaknesses, and limitations
Using the HIPO technique, designers can evaluate and refine a program’s design, and correct flaws prior to implementation.
Given the graphic nature of HIPO, users and managers can easily follow a program’s structure.
The hierarchy chart serves as a useful planning and visualization document for managing the program development process. The IPO charts define for the programmer each module’s inputs, outputs, and algorithms.
In theory, HIPO provides valuable long-term documentation.
However, the “text plus flowchart” nature of the IPO charts makes them difficult to maintain, so the documentation often does not represent the current state of the program.
By its very nature, the HIPO technique is best used to plan and/or document a hierarchically structured program.
64.3 Inputs and related ideas

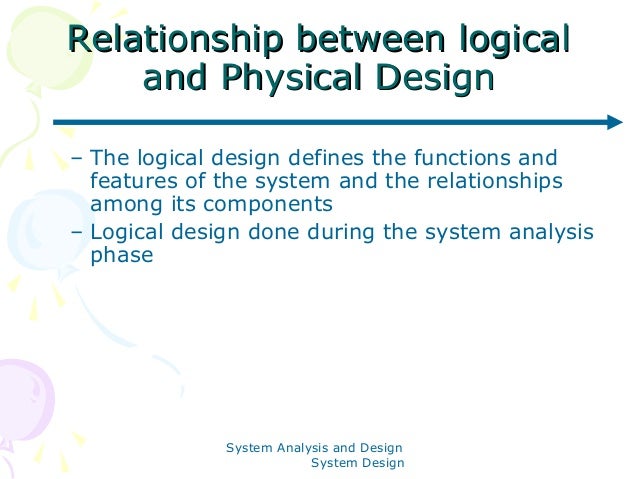

During the analysis stage of the system life cycle (Part IV), the analyst creates logical models using such tools as data flow diagrams (Chapter 24) and entity-relationship diagrams (Chapter 26).
Given those models as a base, the analyst then identifies several alternative solutions during the high-level system design stage (Part V) using such tools as system flow diagrams (Chapter 37) to document them.
The alternatives usually identify, at a black box level, one or more programs. HIPO is a tool for planning and/or documenting the programs.
The HIPO technique is often used to plan or document a structured program (Chapter 62). A variety of tools, including pseudocode (Chapter 59) and structured English (Chapter 60), can be used to describe processes on an IPO chart.
HIPO / IPO Diagrams
System flowcharting symbols (Chapter 37) are sometimes used to identify physical input, output, and storage devices on an IPO chart.
A completed HIPO package has two parts. A hierarchy chart is used to represent the top-down structure of the program.
For each module depicted on the hierarchy chart, an IPO (Input-Process-Output) chart is used to describe the inputs to, the outputs from, and the process performed by the module.
64.4.1 The hierarchy chart
Table 64.1 summarizes the primary tasks to be performed by an interactive inventory program. Figure 64.1shows one possible hierarchy chart (or visual table of contents) for that program.
Each box represents one module (Chapter 62) that can call its subordinates and return control to its higher-level parent.
Figure 64.1 A hierarchy chart for an interactive inventory control program.
At the top of Figure 64.1 is the main control module, Manage inventory (module 1.0).
It accepts a transaction, determines the transaction type, and calls one of its three subordinates (modules 2.0, 3.0, and 4.0).
Lower-level modules are identified relative to their parent modules; for example, modules 2.1, 2.2, and 2.3 are subordinates of module 2.0, modules 2.1.1, 2.1.2, and 2.1.3 are subordinates of 2.1, and so on.
The module names consist of an active verb followed by a subject that suggests the module’s function.
The objective of the module identifiers is to uniquely identify each module and to indicate its place in the hierarchy. Some designers use Roman numerals (level I, level II) or letters (level A, level B) to designate levels. Others prefer a hierarchical numbering scheme; e.g., 1.0 for the first level; 1.1, 1.2, 1.3 for the second level; and so on.
The key is consistency.
The box at the lower-left of Figure 64.1 is a legend that explains how the arrows on the hierarchy chart and the IPO charts are to be interpreted.
By default, a wide clear arrow represents a data flow, a wide black arrow represents a control flow, and a narrow arrow indicates a pointer.
64.4.2 The IPO charts
An IPO chart is prepared to document each of the modules on the hierarchy chart.
126.96.36.199 Overview diagrams
An overview diagram is a high-level IPO chart that summarizes the inputs to, processes or tasks performed by, and outputs from a module.
For example, Figure 64.2 shows an overview diagram for process 2.0, Update stock. Where appropriate, system flowcharting symbols (Chapter 37) are used to identify the physical devices that generate the inputs and accept the outputs. The processes are typically described in brief paragraph or sentence form.
Ipo and hipo chart in sad in hindi
Arrows show the primary input and output data flows.
Figure 64.2 An overview diagram for process 2.0.
Overview diagrams are primarily planning tools. They often do not appear in the completed documentation package.
188.8.131.52 Detail diagrams
A detail diagram is a low-level IPO chart that shows how specific input and output data elements or data structures are linked to specific processes.
In effect, the designer integrates a system flowchart into the overview diagram to show the flow of data and control through the module.
Figure 64.3 shows a detail diagram for module 2.0, Update stock.
The process steps are written in pseudocode. Note that the first step writes a menu to the user screen and input data (the transaction type) flows from that screen to step 2.
Step 3 is a case structure. Step 4 writes a transaction complete message to the user screen.
The solid black arrows at the top and bottom of the process box show that control flows from module 1.0 and, upon completion, returns to module 1.0. Within the case structure (step 3) are other solid black arrows.
Figure 64.3 A detail diagram for process 2.0.
Following case 0 is a return (to module 1.0).
what is IPO and how to invest in IPO
The two-headed black arrows following cases 1, 2, and 3 represent subroutine calls; the off-page connector symbols (the little home plates) identify each subroutine’s module number.
Note that each subroutine is documented in a separate IPO chart. Following the default case, the arrow points to an on-page connector symbol numbered 1. Note the matching on-page connector symbol pointing to the select structure. On-page connectors are also used to avoid crossing arrows on data flows.
Figure 64.4 A detail diagram for process 2.1.
Often, detailed notes and explanations are written on an extended description that is attached to each detail diagram. The notes might specify access methods, data types, and so on.
Figure 64.4 shows a detail diagram for process 2.1.
The module writes a template to the user screen, reads a stock number and a quantity from the screen, uses the stock number as a key to access an inventory file, and updates the stock on hand. Note that the logic repeats the data entry process if the stock number does not match an inventory record.
A real IPO chart is likely to show the error response process in greater detail.
184.108.40.206 Simplified IPO charts
Some designers simplify the IPO charts by eliminating the arrows and system flowchart symbols and showing only the text. Often, the input and out put blocks are moved above the process block (Figure 64.5), yielding a form that fits better on a standard 8.5 × 11 (portrait orientation) sheet of paper.
Some programmers insert modified IPO charts similar to Figure 64.5 directly into their source code as comments.
Because the documentation is closely linked to the code, it is often more reliable than stand-alone HIPO documentation, and more likely to be maintained.
Figure 64.5 A simplified IPO diagram.
64.5 Key terms
Detail diagram —
A low-level IPO chart that shows how specific input and output data elements or data structures are linked to specific processes.
Hierarchy chart —
A diagram that graphically represents a program’s control structure.
Software Analysis & Design Tools
HIPO (Hierarchy plus Input-Process-Output) —
A tool for planning and/or documenting a computer program that utilizes a hierarchy chart to graphically represent the program’s control structure and a set of IPO (Input-Process-Output) charts to describe the inputs to, the outputs from, and the functions performed by each module on the hierarchy chart.
IPO (Input-Process-Output) chart —
A chart that describes or documents the inputs to, the outputs from, and the functions (or processes) performed by a program module.
Overview diagram —
A high-level IPO chart that summarizes the inputs to, processes or tasks performed by, and outputs from a module.
Visual Table of Contents (VTOC) —
A more formal name for a hierarchy chart.
In the 1970s and early 1980s, HIPO documentation was typically prepared by hand using a template.
Some CASE products and charting programs include HIPO support. Some forms generation programs can be used to generate HIPO forms. The examples in this chapter were prepared using Visio.
1. Gane, C.
and Sarson, T., Structured Systems Analysis: Tools and Techniques, Prentice-Hall, Englewood Cliffs, NJ, 1979.
2. IBM Corporation, HIPO—A Design Aid and Documentation Technique, Publication Number GC20-1851, IBM Corporation, White Plains, NY, 1974.
3. Katzan, H., Jr., Systems Design and Documentation: An Introduction to the HIPO Method, Van Nostrand Reinhold, New York, 1976.
4. Peters, L.
HIPO Chart ( Data Flow Diagram)
J., Software Design: Methods and Techniques, Yourdon Press, New York, 1981.
5. Yourdon, E. and Constantine, Structured Design, Prentice-Hall, Englewood Cliffs, NJ, 1979.
